AT26DF321

The AT26DF321 is (AT25DF321 / AT26DF321) 32M-Bit Serial Firmware Dataflash Memory designed by ATMEL Corporation.

Product Overview

ATMEL Corporation

Datasheet Details

Part number	AT26DF321
Manufacturer	ATMEL Corporation
File Size	633.51 KB
Description	(AT25DF321 / AT26DF321) 32M-Bit Serial Firmware Dataflash Memory
Datasheet	AT26DF321_ATMELCorporation.pdf

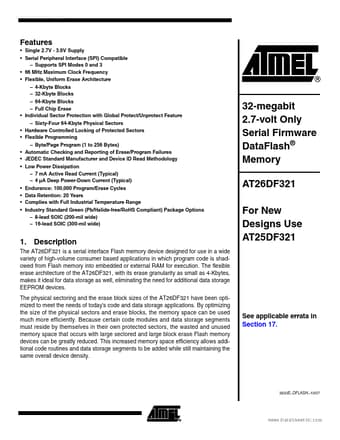

Additional preview pages of the AT26DF321 datasheet.

Product details

Description

The AT26DF321 is a serial interface Flash memory device designed for use in a wide variety of high-volume consumer based applications in which program code is shadowed from Flash memory into embedded or external RAM for execution.

Features

Single 2.7V - 3.6V Supply.
Serial Peripheral Interface (SPI) Compatible.
Supports SPI Modes 0 and 3.
66 MHz Maximum Clock Frequency.
Flexible, Uniform Erase Architecture.
4-Kbyte Blocks.
32-Kbyte Blocks.
64-Kbyte Blocks.
Full Chip Erase Individual Sector Protection with Global Protect/Unprotect Feature.
Sixty-Four 64-Kbyte Physical Sectors Hardware Controlled Locking of Protected Sectors Flexible Programm.
