AT26DF321 32-megabit 2.7-volt Only Serial Firmware DataFlash Memory

AT26DF321 Description

www.DataSheet4U.com .
The AT26DF321 is a serial interface Flash memory device designed for use in a wide variety of high-volume consumer based applications in which program.

AT26DF321 Features

* Single 2.7V - 3.6V Supply
* Serial Peripheral Interface (SPI) Compatible
* Supports SPI Modes 0 and 3
* 66 MHz Maximum Clock Frequency
* Flexible, Uniform Erase Architecture
* 4-Kbyte Blocks
* 32-Kbyte Blocks
* 64-Kbyte Blocks

AT26DF321 Applications

* in which program code is shadowed from Flash memory into embedded or external RAM for execution. The flexible erase architecture of the AT26DF321, with its erase granularity as small as 4-Kbytes, makes it ideal for data storage as well, eliminating the need for additional data storage EEPROM devices

📥 Download Datasheet

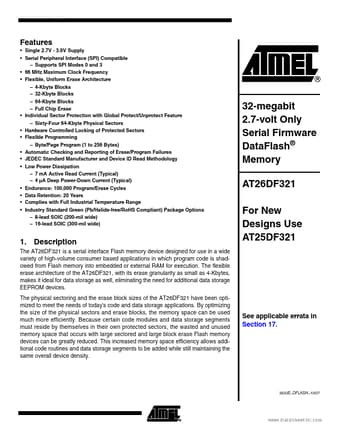

Preview of AT26DF321 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT26DF321
Manufacturer
ATMEL Corporation
File Size
633.51 KB
Datasheet
AT26DF321_ATMELCorporation.pdf
Description
32-megabit 2.7-volt Only Serial Firmware DataFlash Memory
