AT25128B - SPI Serial EEPROM

ATMEL Corporation

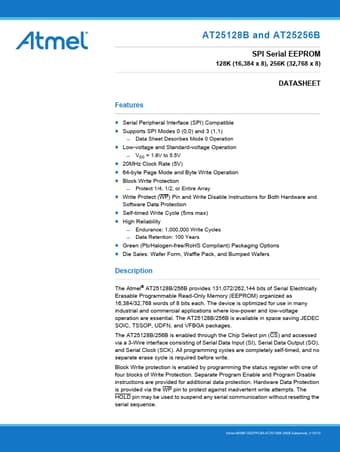

AT25128B Datasheet Preview — Preview of AT25128B PDF

Datasheet Details

Part number	AT25128B
Manufacturer	ATMEL ↗ Corporation
File Size	437.07 KB
Description	SPI Serial EEPROM
Datasheet	AT25128B-ATMELCorporation.pdf

AT25128B Product details

Description

The Atmel® AT25128B/256B provides 131,072/262,144 bits of Serial Electrically Erasable Programmable Read-Only Memory (EEPROM) organized as 16,384/32,768 words of 8 bits each.

Features

Serial Peripheral Interface (SPI) Compatible.
Supports SPI Modes 0 (0,0) and 3 (1,1) ̶ Data Sheet Describes Mode 0 Operation.
Low-voltage and Standard-voltage Operation ̶ VCC = 1.8V to 5.5V.
20MHz Clock Rate (5V).
64-byte Page Mode and Byte Write Operation.
Block Write Protection ̶ Protect 1/4, 1/2, or Entire Array.
Write Protect (WP) Pin and Write Disable Instructions for Both Hardware and Software Data Protection.
Self-timed Write Cycle (5ms max).
