AT24C512C - EEPROM

ATMEL Corporation

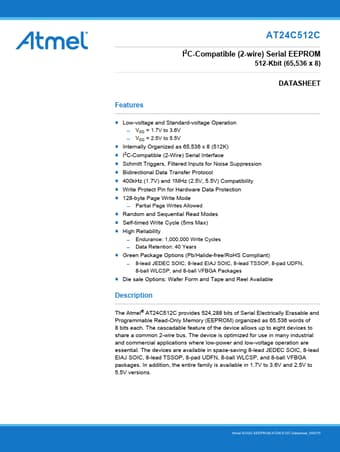

AT24C512C Datasheet Preview — Preview of AT24C512C PDF

Datasheet Details

Part number	AT24C512C
Manufacturer	ATMEL ↗ Corporation
File Size	916.86 KB
Description	EEPROM
Datasheet	AT24C512C-ATMELCorporation.pdf

AT24C512C Product details

Description

The Atmel® AT24C512C provides 524,288 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 65,536 words of 8 bits each.

Features

Low-voltage and Standard-voltage Operation ̶ VCC = 1.7V to 3.6V ̶ VCC = 2.5V to 5.5V.
Internally Organized as 65,536 x 8 (512K).
I2C-Compatible (2-Wire) Serial Interface.
Schmitt Triggers, Filtered Inputs for Noise Suppression.
Bidirectional Data Transfer Protocol.
400kHz (1.7V) and 1MHz (2.5V, 5.5V) Compatibility.
Write Protect Pin for Hardware Data Protection.
128-byte Page Write Mode ̶ Partial Page Writes Allowed.
Random and Sequential Read Modes.
