ASI3486 ZERO BIAS SCHOTTKY DIODE

ASI3486 Description

ASI3486 ZERO BIAS SCHOTTKY DIODE .
The ASI 3486 is a Silicon Schottky Barrier Diode Designed for High Sensitivity Zero Bias Detector Applications up to 10 GHz.

ASI3486 Features

* INCLUDE:
* Replacement for HSCH3486 and MA4E928 series
* -56 dBm TSS Typical @ 10 GHz
* Hermetic Glass Package MAXIMUM RATINGS IF 10 mA VR PDISS TJ TSTG Tsoldering 2.0 V 300 mW @ TC = 25 OC -65 OC to +150 OC -65 OC to +150 OC +230 OC for 5 Seconds PACKAGE STYLE 01 ASI OR

📥 Download Datasheet

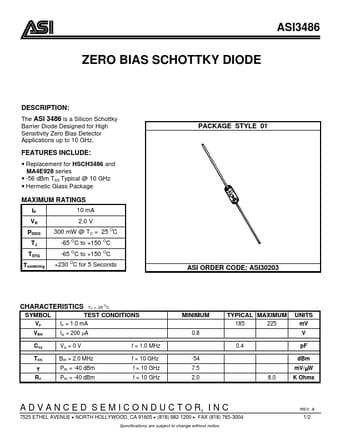

Preview of ASI3486 PDF
datasheet Preview Page 2

Datasheet Details

Part number
ASI3486
Manufacturer
ASI
File Size
35.65 KB
Datasheet
ASI3486-ASI.pdf
Description
ZERO BIAS SCHOTTKY DIODE
