ASG101 - DC-3000 MHz SiGe HBT Amplifier

ASB

ASG101 Description

ASG101 DC-3000 MHz SiGe HBT Amplifier .
The ASG101 is designed for high linearity, high gain, and low noise over a wide range of frequency, being suitable for use in both receiver and transm.

ASG101 Features

* SiGe Technology
* 22 dB Gain at 900 MHz
* +18 dBm P1dB
* +31 dBm Output IP3
* 3.0 dB Noise Figure
* Single +4.5 V Supply

ASG101 Applications

* CDMA, GSM, W-CDMA, PCS
* PA Driver Amplifier
* Gain Block
* CATV Amplifier
* IF Amplifier More Information Website: www. asb. co. kr E-mail: sales@asb. co. kr Tel: (82) 42-528-7220 Fax: (82) 42-528-7222 ASB Inc. , 4th Fl. Venture Town Bldg. , 367-17 Goijeong-Dong, Seo-Gu, Daejon 302-716, K

📥 Download Datasheet

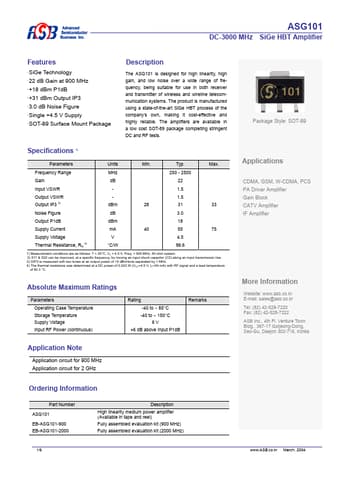

ASG101 Datasheet Preview — Preview of ASG101 PDF

Datasheet Details

Part number: ASG101
Manufacturer: ASB
File Size: 184.11 KB
Datasheet: ASG101-ASB.pdf
Description: DC-3000 MHz SiGe HBT Amplifier
