JRC4558 - Dual Operational Amplifier

JRC4558 Description

.
The JRC4558 is a high performance monolithic dual operational amplifier. up z Large.

JRC4558 Features

* z No frequency compensation required z No latch
* up z Large common mode and differential voltage range z Parameter tracking over temperature range z Gain and phase match between amplifiers z Internally frequency compensated z Low noise input transistors z Pin to pin compatible with MC1458/L

📥 Download Datasheet

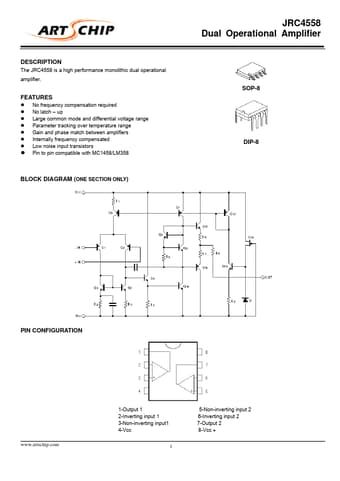

Preview of JRC4558 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
JRC4558
Manufacturer
ART CHIP
File Size
305.94 KB
Datasheet
JRC4558-ARTCHIP.pdf
Description
Dual Operational Amplifier
