AP15G02DF 20V N+P-Channel Enhancement Mode MOSFET

AP15G02DF Description

.
AP15G02DF 20V N+P-Channel Enhancement Mode MOSFET The AP15G02DF uses advanced trench technology to provide excellent RDS(ON), low gate charge and op.

AP15G02DF Applications

* , should be limited by total power dissipation. Unit V mΩ V uA nA S nC ns pF A V 2 AP15G02DF REV1.0 AP15G02DF 20V N+P-Channel Enhancement Mode MOSFET P-Electrical Characteristics (TJ=25℃, unless otherwise noted) Symbol Parameter Test Condition Min V(BR)DSS Drain-Source Breakdown Voltage

📥 Download Datasheet

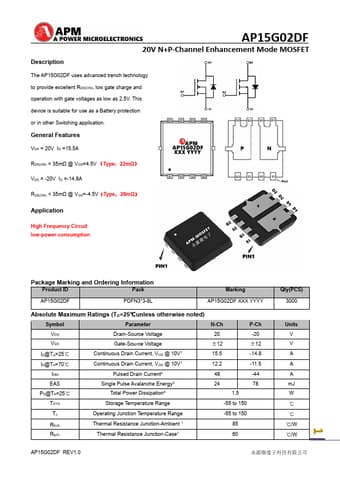

Preview of AP15G02DF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP15G02DF
Manufacturer
APM
File Size
0.98 MB
Datasheet
AP15G02DF-APM.pdf
Description
20V N+P-Channel Enhancement Mode MOSFET
