AP120N06BD 60V N-Channel Enhancement Mode MOSFET

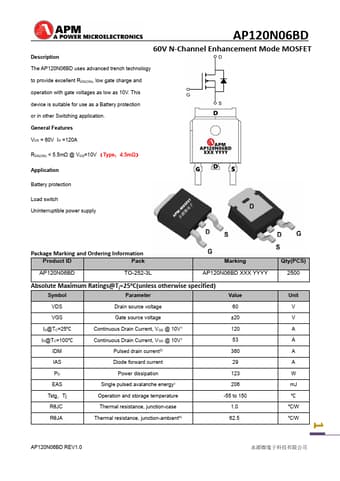

📥 Download Datasheet Datasheet Preview Page 1

Description

.
AP120N06BD 60V N-Channel Enhancement Mode MOSFET The AP120N06BD uses advanced trench technology to provide excellent RDS(ON), low gate charge and.

📥 Download Datasheet

Preview of AP120N06BD PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
AP120N06BD
Manufacturer
APM
File Size
754.98 KB
Datasheet
AP120N06BD-APM.pdf
Description
60V N-Channel Enhancement Mode MOSFET

Applications

* , should be limited by total power dissipation. 2 AP120N06BD REV1.0 Typical Characteristics AP120N06BD 60V N-Channel Enhancement Mode MOSFET Figure 1: Output Characteristics Figure 2: Typical Transfer Characteristics Figure 3: On-resistance vs. Drain Current Figure 4: Body Diode Characteri
