LCFS1050 - 750-1500 MHz Frequency Synthesizer

API Technologies

📥 Download Datasheet

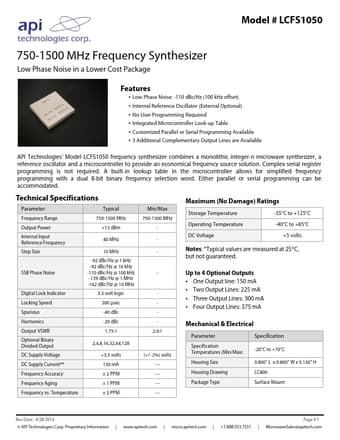

LCFS1050 Datasheet Preview — Preview of LCFS1050 PDF

datasheet Preview Page 2

Datasheet Details

Part number	LCFS1050
Manufacturer	API Technologies
File Size	113.95 KB
Description	750-1500 MHz Frequency Synthesizer
Datasheet	LCFS1050-APITechnologies.pdf

LCFS1050 Product details

Features

Low Phase Noise: -110 dBc/Hz (100 kHz offset).
Internal Reference Oscillator (External Optional).
No User Programming Required.
Integrated Microcontroller Look-up Table.
Customized Parallel or Serial Programming Available.
3 Additional Complementary Output Lines are Available API Technologies’ Model LCFS1050 frequency synthesizer combines a monolithic integer-n microwave synthesizer, a reference oscillator and a microcontroller to provide a.
