PTHF50-121 Surface Mount Toroidal Power Chokes

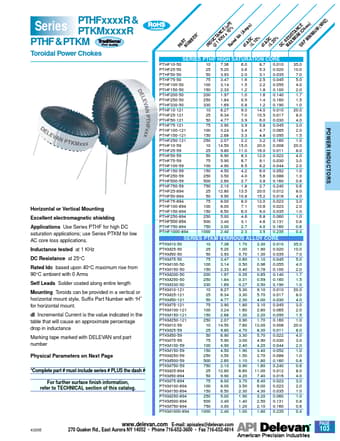

Toroidal Power Chokes Horizontal or Vertical Mounting Excellent electromagnetic shielding Applications Use Series PTHF for high DC saturation applications; use Series PTKM for low AC core loss applications. Inductance tested at 1 KHz DC Resistance at 25°C Rated Idc based upon 40°C maximum rise from 90°C ambient with 0 Arms Self Leads Solder coated along entire length Mounting Toroids can be provided in a vertical or horizontal mount style. Suffix Part Number with “H” for horizontal mount. dI In.
