PT1000 Power Toroids-Horizontal or Vertical Mount

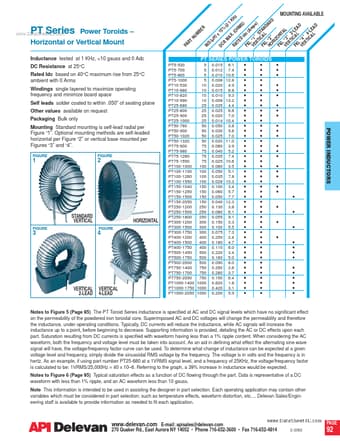

www.DataSheet4U.com Inductance tested at 1 KHz, <10 gauss and 0 Adc DC Resistance at 25°C Rated Idc based on 40°C maximum rise from 25°C ambient with 0 Arms Windings single layered to maximize operating frequency and minimize board space Self leads solder coated to within .050" of seating plane Other values available on request Packaging Bulk only Mounting Standard mounting is self-lead radial per Figure “1”. Optional mounting methods are self-leaded horizontal per Figure “2” or vertical base m.

PT1000 Datasheet (172.82 KB)

Preview of PT1000 PDF
PT1000 Datasheet Preview Page 2 PT1000 Datasheet Preview Page 3

Datasheet Details

Part number:

PT1000

Manufacturer:

API Delevan

File Size:

172.82 KB

Description:

Power toroids-horizontal or vertical mount.
