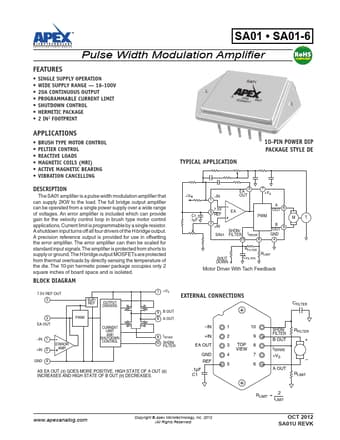

SA01-6 - Pulse Width Modulation Amplifier
The SA01 amplifier is a pulse width modulation amplifier that can supply 2KW to the load.
The full bridge output amplifier can be operated from a single power supply over a wide range of voltages.
An error amplifier is included which can provide gain for the velocity control loop in brush type motor
SA01-6 Features
* SINGLE SUPPLY OPERATION
* WIDE SUPPLY RANGE
* 16-100V
* 20A CONTINUOUS OUTPUT
* PROGRAMMABLE CURRENT LIMIT
* SHUTDOWN CONTROL
* HERMETIC PACKAGE
* 2 IN2 FOOTPRINT SA01 ∆ TE9U49S3A11 BeO APPLICATIONS
* BRUSH TYPE MOTO
