SBR40U100CT Super Barrier Rectifier

APD

Description

SBR40U100CT Using state-of-the-art SBR IC process technology, the following .

📥 Download Datasheet

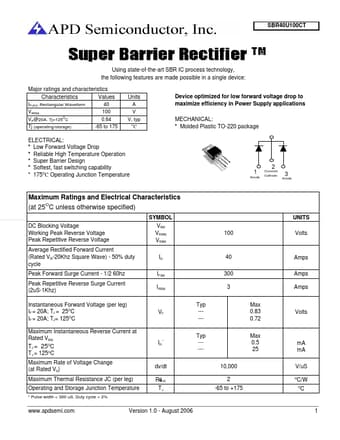

SBR40U100CT Datasheet Preview — Preview of SBR40U100CT PDF

Datasheet Specifications

Part number: SBR40U100CT
Manufacturer: APD
File Size: 91.50 KB
Datasheet: SBR40U100CT_APD.pdf
Description: Super Barrier Rectifier

Features

* are made possible in a single device: Major ratings and characteristics Values Characteristics IF(AV) Rectangular Waveform VRRM VF@20A, Tj=125OC Tj (operating/storage) 40 100 0.64 -65 to 175 Units A V V, typ O C Device optimized for low forward voltage drop to maximize efficiency in Power Supply a

Applications

* MECHANICAL:
* Molded Plastic TO-220 package ELECTRICAL:
* Low Forward Voltage Drop
* Reliable High Temperature Operation
* Super Barrier Design
* Softest, fast switching capability
* 175OC Operating Junction Temperature 1 Anode Common Cathode 2 3 Anode Maximum Ratings a
