AP8100 - Bipolar Stepping Motor Driver IC

AP8100 Description

AP8100 Bipolar Stepping Motor Driver IC .
The AP8100 is 2 phase stepping motor driver IC.

AP8100 Features

* One Chip 2 Phase Stepping Motor Driver including two bridge drivers
* Power Saving and Stand-by Operation
* Short-Through Current Restriction Circuit
* TTL Compatible Inputs
* Output Current up to 400mA(Peak)
* Over Current Shutdown Circuit
* Thermal Shutdown Circuit

📥 Download Datasheet

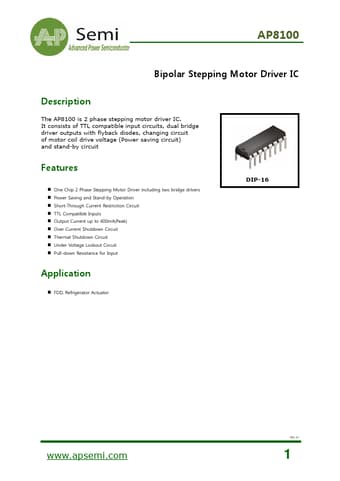

Preview of AP8100 PDF
