APX9189 - 12V/24V High Sensitivity Hall

APX9189 Description

APX9189 12V/24V High Sensitivity Hall IC for FAN Driver .
The APX9189 is an integrated Hall Effect Sensor IC designed for electric commutation of two-phase DC brushless motor applications.

APX9189 Features

* On-Chip Hall Sensor
* 12V/24V Operating Supply Voltage Available
* High Sensitivity Hall Effect Sensor IC: ±60G
* Built-in Output Protection Clamping Circuit
* Lock Protection and Auto Restart Function
* 4 Pin TO-92M4 Package
* Lead Free and

APX9189 Applications

* The device is built-in lock protection. When fan is locked, the device will enter the lock protection mode. The APX9189 is available in a low cost TO-92M4 package. Pin Configuration Applications
* Brushless DC Fans
* Brushless DC Motors APX9189 Front View 1 : VDD 2 : DO 3 : DOB 4

📥 Download Datasheet

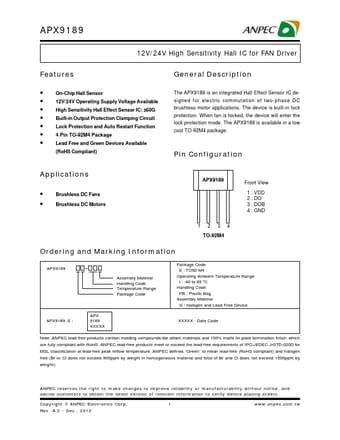

Preview of APX9189 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APX9189
Manufacturer
ANPEC
File Size
158.89 KB
Datasheet
APX9189-ANPEC.pdf
Description
12V/24V High Sensitivity Hall
