APW8868C - DDR2 AND DDR3/DDR3L SYNCHRONOUS BUCK CONTROLLER

Datasheet Summary

Description

The APW8868C integrates a synchronous buck PWM controller to generate VDDQ, a sourcing and sinking LDO linear regulator to generate VTT.

It offers the lowest total solution cost in system where space is at a premium.

Features

  • Buck Controller (VDDQ).
  • High Input Voltages Range from 3V to 28V Input Power.
  • Provide Adjustable Output Voltage from 0.75V to 5.5V ±1%Accuracy over Temperature.
  • Integrated MOSFET Drivers and Bootstrap Forward P-CH MOSFET.
  • Low Quiescent Current (200mA).
  • Excellent Line and Load Transient Responses.
  • PFM Mode for Increased Light Load Efficiency.
  • Constant On-Time Controller Scheme - Switching Frequency Compensation for PWM Mode - Adjustable Switching Frequency from.

📥 Download Datasheet

Datasheet preview – APW8868C

Datasheet Details

Part number APW8868C
Manufacturer ANPEC
File Size 654.85 KB
Description DDR2 AND DDR3/DDR3L SYNCHRONOUS BUCK CONTROLLER
Datasheet download datasheet APW8868C Datasheet
Additional preview pages of the APW8868C datasheet.

📁 Similar Datasheet

  • APW1172 - 2.5A SWITCH STEP DOWN SWITCHING REGULATOR (Anpec Electronics Coropration)
  • APW1173 - 2A SWITCH STEP DOWN SWITCHING REGULATOR (Anpec Electronics Coropration)
  • APW34063 - DC/DC Switching Regulator (Anpec Electronics Coropration)
  • APW7004 - Synchronous-Rectifier PWM Controller (Anpec Electronics Coropration)
  • APW7015 - Advanced PWM and Dual Linear Power Controller (Anpec Electronics Coropration)
  • APW7016 - Advanced PWM Power Controller (Anpec Electronics Coropration)
  • APW7025 - Advanced PWM and Dual Linear Power Controller (Anpec Electronics Coropration)
  • APW7026 - Advanced PWM and Dual Linear Power Controllers (Anpec Electronics Coropration)
  • APW7035 - Advanced PWM and Linear Power Controller (Anpec Electronics)
  • APW7036 - Advanced Dual PWM Power Controller (Anpec Electronics)
Other Datasheets by ANPEC
  • APW8868 - DDR2 AND DDR3 SYNCHRONOUS BUCK CONTROLLER
  • APW8868B - DDR2 AND DDR3/DDR3L SYNCHRONOUS BUCK CONTROLLER
  • APW8861 - DDR3 AND DDR4 SYNCHRONOUS BUCK CONTVERTER
  • APW8863 - DDR3 AND DDR4 SYNCHRONOUS BUCK CONTVERTER
  • APW8863A - DDR3 AND DDR4 SYNCHRONOUS BUCK CONTVERTER
  • APW8869B - DDR2 AND DDR3/DDR3L SYNCHRONOUS BUCK CONTROLLER
  • APW8802 - High Input Voltage 8A PWM DC/DC Converter
  • APW8804 - 3A 5V 1MHz Synchronous Buck Converter

Full PDF Text Transcription

Click to expand full text

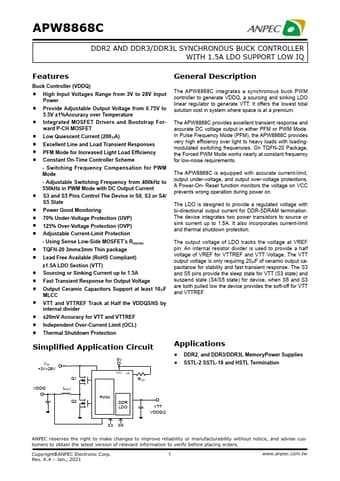

APW8868C DDR2 AND DDR3/DDR3L SYNCHRONOUS BUCK CONTROLLER WITH 1.5A LDO SUPPORT LOW IQ Features Buck Controller (VDDQ)  High Input Voltages Range from 3V to 28V Input Power  Provide Adjustable Output Voltage from 0.75V to 5.
