APW8814 - High-Performance Notebook PWM Controller

APW8814 Description

APW8814 High-Performance Notebook PWM Controller .
The APW8814 is a single-phase, constant-on-time, synchronous PWM controller, which drives N-channel MOSFETs.

APW8814 Applications

* The Power-OnReset function monitors the voltage on VCC and PVCC to prevent wrong operation during power-on. The APW8814 has a 1.2ms digital soft-start and built-in an integrated output discharge device for soft-stop. An internal integrated soft-start ramps up the output voltage with programmable sl

📥 Download Datasheet

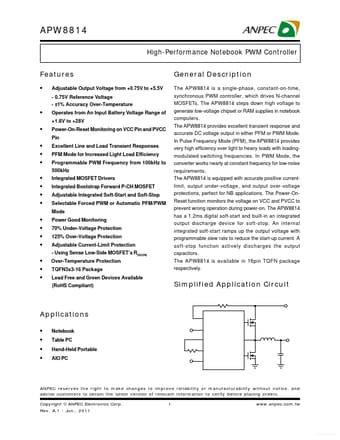

Preview of APW8814 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APW8814
Manufacturer
ANPEC
File Size
496.61 KB
Datasheet
APW8814_ANPEC.pdf
Description
High-Performance Notebook PWM Controller
