APR3003, APR3001 MicroPower Microprocessor Reset

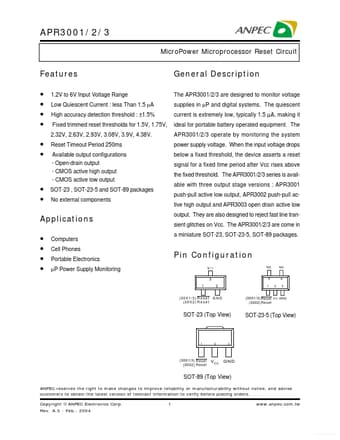

📥 Download Datasheet  Datasheet Preview Page 1

Description

APR3001/2/3 MicroPower Microprocessor Reset Circuit .
The APR3001/2/3 are designed to monitor voltage supplies in µP and digital systems.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: APR3003, APR3001. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
APR3003, APR3001
Manufacturer
ANPEC
File Size
168.62 KB
Datasheet
APR3001_ANPEC.pdf
Description
MicroPower Microprocessor Reset
Note
This datasheet PDF includes multiple part numbers: APR3003, APR3001.
Please refer to the document for exact specifications by model.

Features

* 1.2V to 6V Input Voltage Range Low Quiescent Current : less Than 1.5 µA High accuracy detection threshold : ±1.5% Fixed trimmed reset thresholds for 1.5V, 1.75V, 2.32V, 2.63V, 2.93V, 3.08V, 3.9V, 4.38V. Reset Timeout Period 250ms Available

Applications

* Computers Cell Phones Portable Electronics µP Power Supply Monitoring Pin Configuration V CC 3 1 2 NC NC 5 1 2 4 3 (3 0 0 1 /3 ) R e s e t G N D (3 0 0 2 ) R e s e t (3001/3) Reset V CC GND (3002) Reset SOT-23 (Top View) SOT-23-5 (Top View) 1 2 3 (300
