APL3519, APL3518 - USB Power-Distribution Switches

ANPEC

📥 Download Datasheet

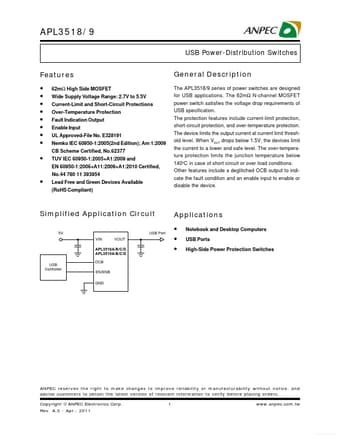

APL3519 Datasheet Preview — This datasheet PDF includes multiple part numbers: APL3519, APL3518. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	APL3519, APL3518
Manufacturer	ANPEC
File Size	341.32 KB
Description	USB Power-Distribution Switches
Datasheet	APL3518_ANPEC.pdf
Note	This datasheet PDF includes multiple part numbers: APL3519, APL3518. Please refer to the document for exact specifications by model.

APL3519 Product details

Description

The APL3518/9 series of power switches are designed for USB applications.

Features

62mΩ High Side MOSFET Wide Supply Voltage Range: 2.7V to 5.5V Current-Limit and Short-Circuit Protections Over-Temperature Protection Fault Indication Output Enable Input UL Approved-File No. E328191 Nemko IEC 60950-1:2005(2nd Edition); Am 1:2009 CB Scheme Certified, No.62377 TUV IEC 60950-1:2005+A1:2009 and EN 60950-1:2006+A11:2009+A1:2010 Certified, No.44 780 11 393954 Lead Free and Green Device.
