APL3208B, APL3208A - Li+ Charger Protector

ANPEC

📥 Download Datasheet

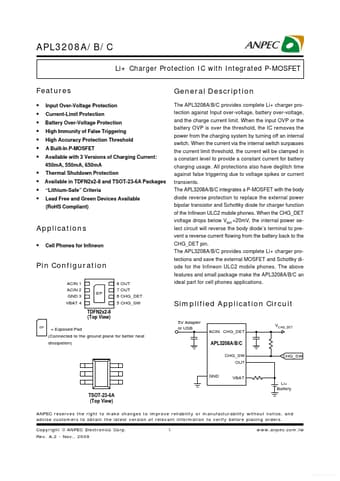

APL3208B Datasheet Preview — This datasheet PDF includes multiple part numbers: APL3208B, APL3208A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	APL3208B, APL3208A
Manufacturer	ANPEC
File Size	306.62 KB
Description	Li+ Charger Protector
Datasheet	APL3208A_ANPEC.pdf
Note	This datasheet PDF includes multiple part numbers: APL3208B, APL3208A. Please refer to the document for exact specifications by model.

APL3208B Product details

Description

The APL3208A/B/C provides complete Li+ charger protection against Input over-voltage, battery over-voltage, and the charge current limit.

Features

Input Over-Voltage Protection Current-Limit Protection Battery Over-Voltage Protection High Immunity of False Triggering High Accuracy Protection Threshold A Built-In P-MOSFET Available with 3 Versions of Charging Current: 450mA, 550mA, 650mA Thermal Shutdown Protection Available in TDFN2x2-8 and TSOT-23-6A Packages “Lithium-Safe” Criteria Lead Free and Green Devices Available (RoHS Comp.
