APC206 Rail to Rail Output CMOS Single Operating Amplifier

ANPEC

APC206 Description

APC206/207/208 Rail to Rail Output CMOS Single Operating Amplifier .
The APC206/207/208 brings performance and enconomy with high gain, CMOS operating amplifier, combining rail to rail output range with large output cur.

APC206 Features

* Operating Voltage Single Supply, 3V to 6V
* Low Input Current, 2pA
* Rail to Rail Output Swing
* Push-Pull Output Driving
* High Output Current Drive, 310mA
* Bandwidth:7MHz
* Wide Temperature Range
* Available in the SOT-23-5 Package

APC206 Applications

* Amplifiers
* Filters
* Analog Circuit Ordering and Marking Information APC206/207/208 Assembly Material Handling Code Temperature Range Package Code Package Code B : SOT-23-5 Temperature Range I : - 40 to 85 oC Handling Code TR : Tape & Reel Assembly Material G : Haloge

📥 Download Datasheet

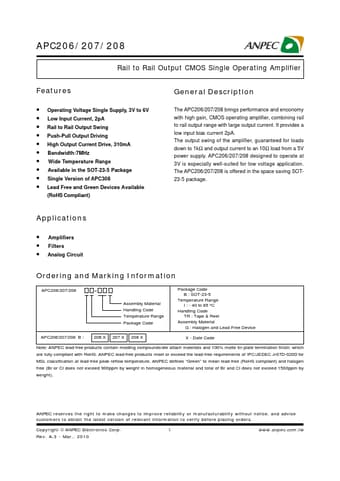

APC206 Datasheet Preview — Preview of APC206 PDF

Datasheet Details

Part number: APC206
Manufacturer: ANPEC
File Size: 178.12 KB
Datasheet: APC206-ANPEC.pdf
Description: Rail to Rail Output CMOS Single Operating Amplifier
