APA2011A, APA2011 2.8W Mono Class D Audio Power Amplifier

APA2011A Description

APA2011/2011A 2.8W Mono Class D Audio Power Amplifier with AGC .
The APA2011/2011A is a mono, filter-free Class-D audio amplifier available in WLCSP1.

APA2011A Features

* Operating Voltage: 2.4V-5.5V High Efficiency up to 90% Supply Current ¡VIDD=3mA at VDD=5V ¡VIDD=2.5mA at VDD=3.6V Low Shutdown Current ¡VIDD=1µA at VDD=5V Output Power at 1% THD+N ¡V1.3W, at VDD=5V, RL=8Ω ϒς 0.6W, at VDD=3.6V, RL=8Ω ϒς 2.0W, at VDD=5

APA2011A Applications

* Audio Input Signals APA2011/2011A INN OUTN
* Mobil Phones Handset PDAs Portable Multimedia Device ANPEC reserves the right to make changes to improve reliability or manufacturability without notice, and advise customers to obtain the latest version of relev

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: APA2011A, APA2011. Please refer to the document for exact specifications by model.

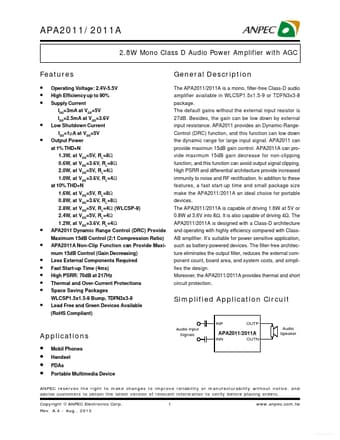

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APA2011A, APA2011
Manufacturer
ANPEC
File Size
708.06 KB
Datasheet
APA2011_ANPEC.pdf
Description
2.8W Mono Class D Audio Power Amplifier
Note
This datasheet PDF includes multiple part numbers: APA2011A, APA2011.
Please refer to the document for exact specifications by model.
