APA0712 1.4W Mono Audio Low-Voltage Audio Power Amplifier

APA0712 Description

APA0712 1.4W Mono Audio Low-Voltage Audio Power Amplifier .
The APA0712 is a mono BTL audio power amplifier developed especially for low-voltage applications where internal speakers are required.

APA0712 Features

* Operating Voltage: 2.5V-5.5V
* Supply Current
* IDD=1.5mA at VDD=5V
* IDD=1.2mA at VDD=3.6V
* IDD=1mA at VDD=2.5V
* Low Shutdown Current
* IDD=0.5µA at V =5V DD
* Low Distortion
* 0.85W, at V =5V, DD RL=8Ω THD+N=

APA0712 Applications

* where internal speakers are required. Operating with a 5V supply, the APA0712 can deliver 1.4W of continuous power into a BTL 8Ω load at 10% THD+N throughout voice band frequencies. Although this device is characterized out to 20kHz, its operation is optimized for narrow band applications such as wi

📥 Download Datasheet

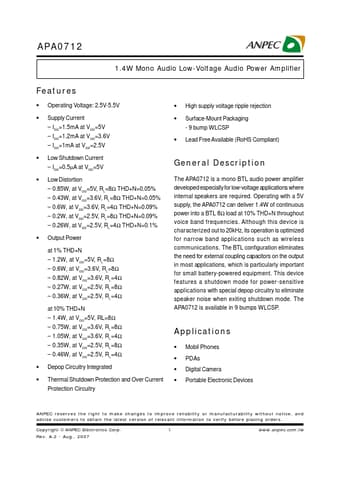

Preview of APA0712 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APA0712
Manufacturer
ANPEC
File Size
438.94 KB
Datasheet
APA0712-ANPEC.pdf
Description
1.4W Mono Audio Low-Voltage Audio Power Amplifier
