TPSMB24A, TPSMB13A - Surface Mount Transient Voltage Suppressors

TPSMB24A Description

TPSMB Series Breakdown Voltage: 13 to 200 V Surface Mount Peak Pulse Power: 600 W Transient Voltage Suppressors .

TPSMB24A Features

* Glass passivated chip
* 600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 %

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPSMB24A, TPSMB13A. Please refer to the document for exact specifications by model.

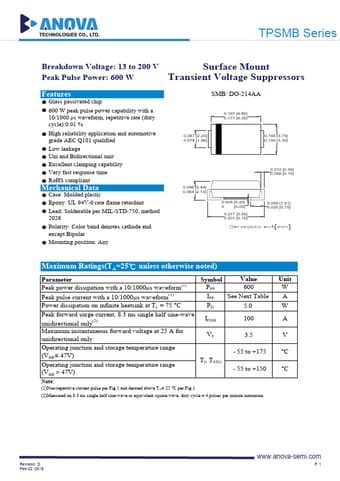

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPSMB24A, TPSMB13A
Manufacturer
ANOVA
File Size
239.79 KB
Datasheet
TPSMB13A-ANOVA.pdf
Description
Surface Mount Transient Voltage Suppressors
Note
This datasheet PDF includes multiple part numbers: TPSMB24A, TPSMB13A.
Please refer to the document for exact specifications by model.
