P6SMA10A, P6SMA - Surface Mount Transient Voltage Suppressors

The P6SMA10A by ANOVA is a Surface Mount Transient Voltage Suppressors. Below is the official datasheet preview.

Datasheet Details

Part number	P6SMA10A, P6SMA
Manufacturer	ANOVA
File Size	572.68 KB
Description	Surface Mount Transient Voltage Suppressors
Datasheet	P6SMA-ANOVA.pdf
Note	This datasheet PDF includes multiple part numbers: P6SMA10A, P6SMA. Please refer to the document for exact specifications by model.

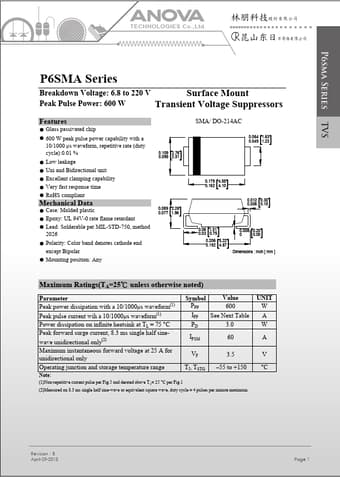

Additional preview pages of the P6SMA10A datasheet.

ϥ Glass passivated chip ϥ 600 W peak pulse power capability with a 10/1000 ȝs waveform, repetitive rate (duty cycle):0.01 % ϥ Low leakage ϥ Uni and Bidirectional unit ϥ Excellent clamping capability ϥ Very fast response time ϥ RoHS compliant Mechanical Data ϥ Case: Molded plastic ϥ Epoxy: UL 94V-0 rate flame retardant ϥ Lead: Solderable per MIL-STD-750, method 2026 ϥ Polarity: Color band denotes cathode end except Bipolar ϥ Mounting position: Any [ ]0.109 2.76 0.099 2.51 [ ]0.089 2.26 0.077 1.9.
