SM15S43CA, SM15S10A - Surface Mount Transient Voltage Suppressors

The SM15S43CA by ANBON is a Surface Mount Transient Voltage Suppressors. Below is the official datasheet preview.

Datasheet Details

Part number	SM15S43CA, SM15S10A
Manufacturer	ANBON
File Size	1.96 MB
Description	Surface Mount Transient Voltage Suppressors
Datasheet	SM15S10A-ANBON.pdf
Note	This datasheet PDF includes multiple part numbers: SM15S43CA, SM15S10A. Please refer to the document for exact specifications by model.

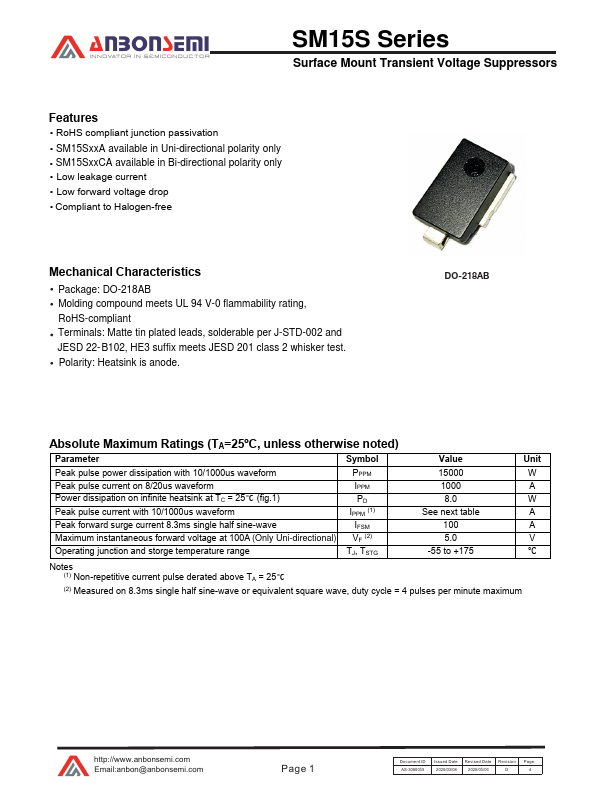

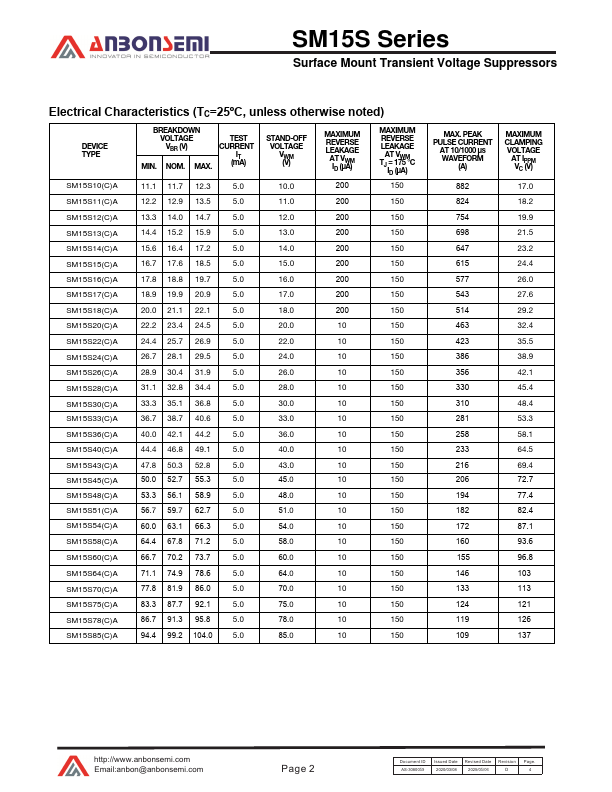

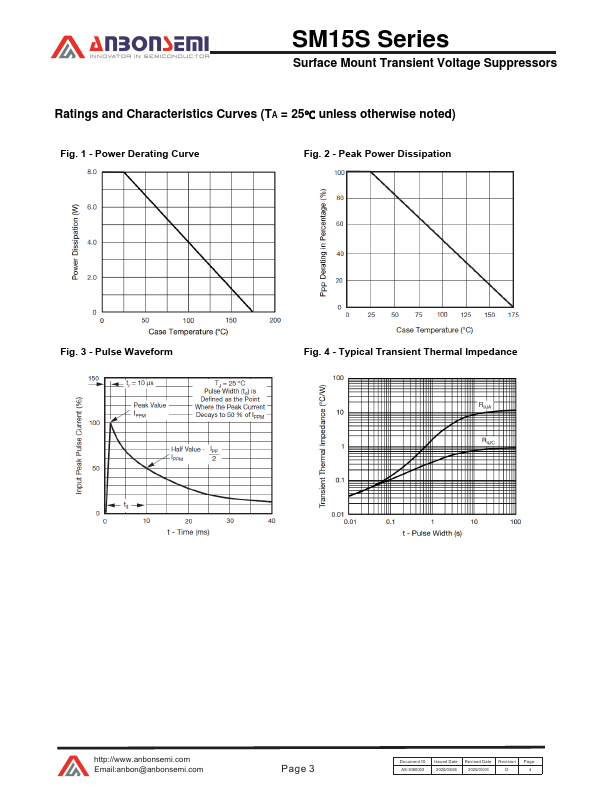

Additional preview pages of the SM15S43CA datasheet.

RoHS compliant junction passivation.
SM15SxxA available in Uni-directional polarity only.
SM15SxxCA available in Bi-directional polarity only.
Low leakage current.
Low forward voltage drop.
Compliant to Halogen-free Mechanical Characteristics Package: DO-218AB Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD 22-B102, HE3 suffix meets JESD 201 class 2 wh.
