AWT6108R GSM850/GSM900/DCS/PCS Quad Band Power Amplifier

AWT6108R Description

AWT6108R GSM850/GSM900/DCS/PCS www.DataSheet4U.com Quad Band Power Amplifier Module With Integrated Power Control PRELIMINARY DATA SHEET - Rev 1.0 FE.
This quad band power amplifier module is designed to support dual, tri and quad band applications.

AWT6108R Applications

* +35 dBm GSM Output Power at 3.5 V +33 dBm DCS/PCS Output Power at 3.5 V 55% GSM PAE 50% DCS/PCS PAE Small Footprint: 7 x 10 mm Low Profile: 1.4 mm Power Control Range: >50 dB GPRS Capable (Class 12) RoHS Compliant Package, 250 oC MSL-3 AW T 610 8R APPLICATIONS
* GSM850/GSM900/D

📥 Download Datasheet

Preview of AWT6108R PDF

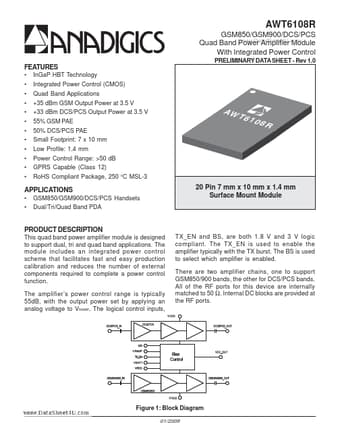

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AWT6108R
Manufacturer
ANADIGICS
File Size
304.52 KB
Datasheet
AWT6108R_ANADIGICS.pdf
Description
GSM850/GSM900/DCS/PCS Quad Band Power Amplifier
