ACA2601 - Fiber-to-the-Home RF Amplifier

Description

The ANADIGICS ACA2601 amplifier for Fiber-to-theHome (FTTH) applications is intended to be used in conjunction with the triplexer in fiber-coax line terminals.

The device is driven by, and amplifies the output of, the video downstream path photodiode.

Features

  • 50 - 870 MHz Operating Frequency High Linearity: 65 dBc CTB/CSO (79 Chan. ) Low Equivalent Input Noise: 4.5 pA/rtHz 20 dB Gain Adjust 400 Ω Differential Input Impedance: No Transformer Required for Interface to Photodiode Single +5 V Supply 5 mm x 5 mm x 1 mm Surface Mount Package RoHS Compliant Package.

📥 Download Datasheet

Datasheet Details

Part number ACA2601
Manufacturer ANADIGICS
File Size 477.10 KB
Description Fiber-to-the-Home RF Amplifier
Datasheet download datasheet ACA2601 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ACA2401S7 750/870 MHz Power Dobler CATV LINE AMPLIFIER MMIC ANADIGICS Inc
ACA2404 High Output Power Doubler Line Amplifier ANADIGICS Inc
ACA2404S7P0 High Output Power Doubler Line Amplifier ANADIGICS Inc
ACA2404S7P2 High Output Power Doubler Line Amplifier ANADIGICS Inc
ACA2407 Power Doubler Line Amplifier ANADIGICS Inc

Other Datasheets by ANADIGICS

Part Number Description
ACA2604 Fiber-to-the-Home RF Amplifier
ACA2401 750/870 MHz CATV Power Doubler Line Amplifier
ACA2402 750/870 MHz CATV Push-Pull Line Amplifier
ACA2402E 750/870 MHz CATV Push-Pull Line Amplifier
ACA2407E 750/870 MHz CATV Power Doubler Line Amplifier

Full PDF Text Transcription

Click to expand full text

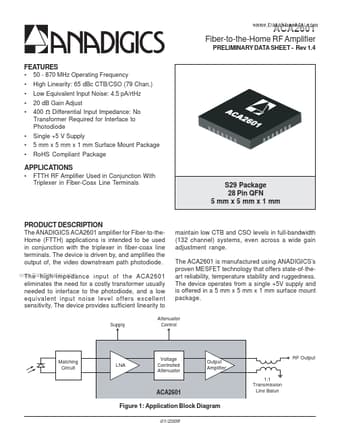

ACA2601 Fiber-to-the-Home RF Amplifier PRELIMINARY DATA SHEET - Rev 1.4 FEATURES • • • • • 50 - 870 MHz Operating Frequency High Linearity: 65 dBc CTB/CSO (79 Chan.) Low Equivalent Input Noise: 4.5 pA/rtHz 20 dB Gain Adjust 400 Ω Differential Input Impedance: No Transformer Required for Interface to Photodiode Single +5 V Supply 5 mm x 5 mm x 1 mm Surface Mount Package RoHS Compliant Package • • • APPLICATIONS • FTTH RF Amplifier Used in Conjunction With Triplexer in Fiber-Coax Line Terminals S29 Package 28 Pin QFN 5 mm x 5 mm x 1 mm PRODUCT DESCRIPTION The ANADIGICS ACA2601 amplifier for Fiber-to-theHome (FTTH) applications is intended to be used in conjunction with the triplexer in fiber-coax line terminals.
