ARA1400S12 - CATV Reverse Amplifier with step Attenuator

General Description

The ARA1400S12 is a GaAs IC designed to perform the reverse path amplification and output level control functions in a CATV Set-Top Box or Cable Modem.

Key Features

  • Low cost integrated monolithic GaAs amplifier and step attenuator with output disconnect switch. Meets DOCSIS distortion requirements at +60 dBmV Frequency range: 5 – 100 MHz Attenuation Range: 0 – 56 dB, variable in 4 dB steps 5 Volt operation Low distortion & Low noise figure.

📥 Download Datasheet

Datasheet Details

Part number ARA1400S12
Manufacturer ANADIGICS Inc
File Size 393.09 KB
Description CATV Reverse Amplifier with step Attenuator
Datasheet download datasheet ARA1400S12 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ARA2017 Programmable Gain Amplifier Anadigics
ARA2803R3S HIGH RELIABILITY RADIATION HARDENED LOW POWER DC-DC CONVERTER Micross
ARA2805S HIGH RELIABILITY RADIATION HARDENED LOW POWER DC-DC CONVERTER Micross
ARA2812S HIGH RELIABILITY RADIATION HARDENED LOW POWER DC-DC CONVERTER Micross
ARA2815S HIGH RELIABILITY RADIATION HARDENED LOW POWER DC-DC CONVERTER Micross

Other Datasheets by ANADIGICS Inc

Part Number Description
ARA05050S12 CATV Reverse Amplifier w/step Attenuator
ARA05050S12-1 CATV Reverse Amplifier w/step Attenuator
ARA2000S23 CATV Reverse Amplifier
ARA2001S23 CATV Reverse Amplifier
ARA3000S23 Telephony Reverse Amplifier With Step Attenuator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

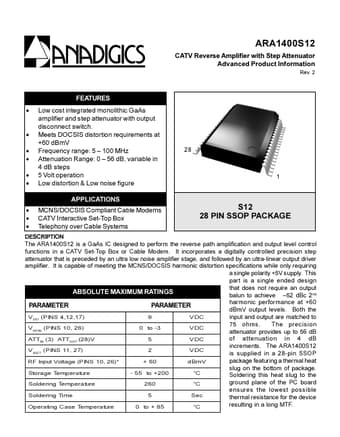

A FEATURES · · · · · · Low cost integrated monolithic GaAs amplifier and step attenuator with output disconnect switch. Meets DOCSIS distortion requirements at +60 dBmV Frequency range: 5 – 100 MHz Attenuation Range: 0 – 56 dB, variable in 4 dB steps 5 Volt operation Low distortion & Low noise figure APPLICATIONS · · · MCNS/DOCSIS Compliant Cable Modems CATV Interactive Set-Top Box Telephony over Cable Systems ARA1400S12 CATV Reverse Amplifier with Step Attenuator Advanced Product Information Rev. 2 28 1 S12 28 PIN SSOP PACKAGE DESCRIPTION The ARA1400S12 is a GaAs IC designed to perform the reverse path amplification and output level control functions in a CATV Set-Top Box or Cable Modem.
