ACD2206 - CATV / TV / VIDEO DOWNCONVERTER

Name: ACD2206
SKU: ACD2206-156189

ANADIGICS Inc

📥 Download Datasheet

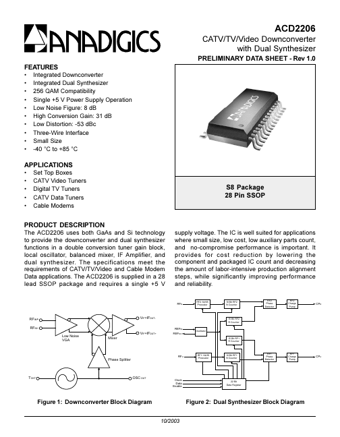

ACD2206 Datasheet Preview — Preview of ACD2206 PDF

Datasheet Details

Part number	ACD2206
Manufacturer	ANADIGICS Inc
File Size	448.47 KB
Description	CATV / TV / VIDEO DOWNCONVERTER
Datasheet	ACD2206_ANADIGICSInc.pdf

ACD2206 Product details

Description

The ACD2206 uses both GaAs and Si technology to provide the downconverter and dual synthesizer functions in a double conversion tuner gain block, local oscillator, balanced mixer, IF Amplifier, and dual synthesizer.

Features

Integrated Downconverter Integrated Dual Synthesizer 256 QAM Compatibility Single +5 V Power Supply Operation Low Noise Figure: 8 dB High Conversion Gain: 31 dB Low Distortion: -53 dBc Three-Wire Interface Small Size -40 °C to +85 °C.
