ACA2407S7P2 - Power Doubler Line Amplifier

Download the ACA2407S7P2 datasheet PDF (ACA included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for power doubler line amplifier.

Description

The ACA2407 is a highly linear, monolithic GaAs RF amplifier that has been developed to replace, in new designs, standard CATV hybrid amplifiers.

Features

  • 21.5 dB Gain Very Low Distortion Excellent 75 Ω Input and Output Match Stable with High VSWR Load Conditions Monolithic Design for Consistent Performance Part-to-Part Low DC Power Consumption Surface Mount Package Compatible with Automatic Assembly Low Cost Alternative to Hybrids Meets Cenelec Standards www. DataSheet4U. com.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ACA-2407.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ACA2407S7P2
Manufacturer ANADIGICS Inc
File Size 238.53 KB
Description Power Doubler Line Amplifier
Datasheet download datasheet ACA2407S7P2 Datasheet

📁 Similar Datasheet

  • ACA2407E - 750/870 MHz CATV Power Doubler Line Amplifier (ANADIGICS)
  • ACA2401 - 750/870 MHz CATV Power Doubler Line Amplifier (ANADIGICS)
  • ACA2402 - 750/870 MHz CATV Push-Pull Line Amplifier (ANADIGICS)
  • ACA2402E - 750/870 MHz CATV Push-Pull Line Amplifier (ANADIGICS)
  • ACA2408 - 34 dB Gain CATV Push-Pull Line Amplifier (ANADIGICS)
  • ACA2429 - High-Output GaN CATV Power-Doubler Amplifier (Skyworks)
  • ACA2601 - Fiber-to-the-Home RF Amplifier (ANADIGICS)
  • ACA2604 - Fiber-to-the-Home RF Amplifier (ANADIGICS)
  • ACA-ZIF-056 - drawing (Lotes)
  • ACA0862 - 1 GHz CATV Line Amplifier MMIC (ANADIGICS Inc)
Other Datasheets by ANADIGICS Inc
  • ACA2407S7P0 - Power Doubler Line Amplifier
  • ACA2407 - Power Doubler Line Amplifier
  • ACA2401S7 - 750/870 MHz Power Dobler CATV LINE AMPLIFIER MMIC
  • ACA2404 - High Output Power Doubler Line Amplifier
  • ACA2404S7P0 - High Output Power Doubler Line Amplifier
  • ACA2404S7P2 - High Output Power Doubler Line Amplifier
  • ACA0861 - 750/860 MHz CATV LINE AMPLIFIER MMIC
  • ACA0861A - 750/860 MHz CATV LINE AMPLIFIER MMIC

Full PDF Text Transcription

Click to expand full text

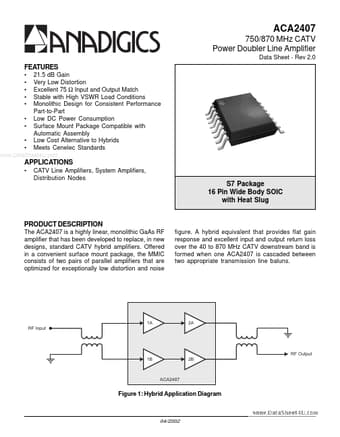

ACA2407 750/870 MHz CATV Power Doubler Line Amplifier Data Sheet - Rev 2.0 FEATURES • • • • • • • • • 21.5 dB Gain Very Low Distortion Excellent 75 Ω Input and Output Match Stable with High VSWR Load Conditions Monolithic Design for Consistent Performance Part-to-Part Low DC Power Consumption Surface Mount Package Compatible with Automatic Assembly Low Cost Alternative to Hybrids Meets Cenelec Standards www.DataSheet4U.com APPLICATIONS • CATV Line Amplifiers, System Amplifiers, Distribution Nodes S7 Package 16 Pin Wide Body SOIC with Heat Slug PRODUCT DESCRIPTION The ACA2407 is a highly linear, monolithic GaAs RF amplifier that has been developed to replace, in new designs, standard CATV hybrid amplifiers.
