AS1104, AS1101 (AS1101 - AS1104) Low-Dropout LED Drivers

AS1104 Description

www.DataSheet4U.com austriamicrosystems Data Sheet A S 11 0 1 , A S 11 0 2 , A S 11 0 3 , A S 11 0 4 Low-Dropout LED Drivers 1 General .
The AS110x family are LED drivers providing matched current source bias for any color LED, including white and blue.

AS1104 Features

* ! ! ! ! ! ! ! ! ! ! ! ! LED Drivers for Parallel-Connected LEDs Ultra-Low Voltage Drop: Less Than 150mV (for Liion Battery Support) Analog and PWM Brightness Control Up to 80mA per LED (AS1101) Up to 40mA per LED (AS1102, AS1103, AS1104) No Electromagnetic Interference, No SwitchingNoise Current-Ma

AS1104 Applications

* DataShee ISET VSET(3V) RSET ENABLE ON CTRL I1/I2 I3/I4 VSET(3V) ISET RSET ENABLE I3 CTRL ON I2 I1 AS1101 GND AS1102 GND 4 Diode Control VIN VIN 4 Diode Control with On/Off ISET VSET(3V) RSET I4 CTRL I3 I2 I1 VSET(3V) ISET RSET ENABLE I4 CTRL ON I3 I2 I1 AS1103 GND AS1104 GND

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AS1104, AS1101. Please refer to the document for exact specifications by model.

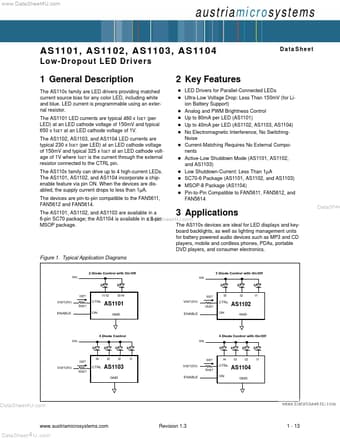

datasheet Preview Page 2 datasheet Preview Page 3
