A62S8308 - 256K X 8 BIT LOW VOLTAGE CMOS SRAM

This page provides the datasheet information for the A62S8308, a member of the A62 256K X 8 BIT LOW VOLTAGE CMOS SRAM family.

Description

The A62S8308 is a low operating current 2,097,152-bit static random access memory organized as 262,144 words by 8 bits and operates on a low power supply voltage from 2.7V to 3.6V.

Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures.

Features

  • n Power supply range: 2.7V to 3.6V n Access times: 55ns (max. ): for VCC = 3.0V to 3.6V 70ns (max. ): for VCC = 2.7V to 3.6V n Current: A62S8308-S series: Operating: 40mA (max. ) Standby: 10µA (max. ) A62S8308-SI series: Operating: 40mA (max. ) Standby: 15µA (max. ) n Extended operating temperature range:-25°C to 85°C for.
  • SI series n n n n Full static operation, no clock or refreshing required All inputs and outputs are directly TTL compatible Common I/O using three-state output Output enable.

📥 Download Datasheet

Datasheet preview – A62S8308

Datasheet Details

Part number A62S8308
Manufacturer AMIC Technology
File Size 278.77 KB
Description 256K X 8 BIT LOW VOLTAGE CMOS SRAM
Datasheet download datasheet A62S8308 Datasheet
Additional preview pages of the A62S8308 datasheet.

📁 Similar Datasheet

  • A62S6308A - 64K x 8-BIT LOW VOLTAGE CMOS SRAM (AMIC)
  • A6201 - 250mA LOW CONSUMPTION LINEAR REGULATOR (AiT Semiconductor)
  • A6201A - CMOS LOW DROPOUT REGULATOR (AiT Semiconductor)
  • A6210 - 3A 2MHz Buck-Regulating LED Driver (Allegro MicroSystems)
  • A6211 - Buck Regulator LED Driver (Allegro)
  • A6213 - PWM Dimmable Buck Regulator LED Driver (Allegro)
  • A6213-1 - PWM Dimmable Buck Regulator LED Driver (Allegro)
  • A6214 - Constant-Current 2A PWM Dimmable Buck Regulator LED Driver (Allegro)
  • A6216 - Constant-Current 2A PWM Dimmable Buck Regulator LED Driver (Allegro)
  • A62166 - Asymmetric thyristors (PST)
Other Datasheets by AMIC Technology
  • A62S8316 - 256K X 16 BIT LOW VOLTAGE CMOS SRAM
  • A62S6308 - 64K X 8 BIT LOW VOLTAGE CMOS SRAM
  • A62S6316 - 64K X 16 BIT LOW VOLTAGE CMOS SRAM
  • A62S6316H - SRAM Low Power & Low Voltage 1Mb X16
  • A62S7308B - 128K x 8 BIT LOW VOLTAGE CMOS SRAM
  • A62S7316 - 128K X 16 BIT LOW VOLTAGE CMOS SRAM
  • A62S9308 - 512K X 8 BIT LOW VOLTAGE CMOS SRAM
  • A623308 - 8K X 8 BIT CMOS SRAM

Full PDF Text Transcription

Click to expand full text

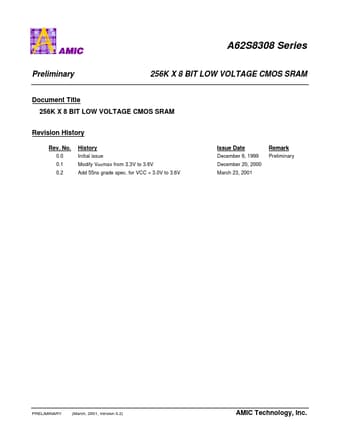

A62S8308 Series Preliminary Document Title 256K X 8 BIT LOW VOLTAGE CMOS SRAM Revision History Rev. No. 0.0 0.1 0.2 256K X 8 BIT LOW VOLTAGE CMOS SRAM History Initial issue Modify VCCmax from 3.3V to 3.6V Add 55ns grade spec. for VCC = 3.0V to 3.6V Issue Date December 6, 1999 December 20, 2000 March 23, 2001 Remark Preliminary PRELIMINARY (March, 2001, Version 0.2) AMIC Technology, Inc. A62S8308 Series Preliminary Features n Power supply range: 2.7V to 3.6V n Access times: 55ns (max.): for VCC = 3.0V to 3.6V 70ns (max.): for VCC = 2.7V to 3.6V n Current: A62S8308-S series: Operating: 40mA (max.) Standby: 10µA (max.) A62S8308-SI series: Operating: 40mA (max.) Standby: 15µA (max.
