A42L8316 256K X 16 CMOS DYNAMIC RAM

A42L8316 Description

A42L8316 Series Preliminary Document Title 256K X 16 CMOS DYNAMIC RAM WITH EDO PAGE MODE Revision History Rev.No.0.0 0.1 256K X 16 CMOS DYNAMIC RAM.
The A42L8316 is a new generation randomly accessed memory for graphics, organized in a 262,144-word by 16bit configuration.

A42L8316 Features

* n Organization: 262,144 words X 16 bits n Part Identification - A42L8316 (512 Ref. ) n Single 3.3V power supply/built-in VBB generator n Low power consumption - Operating: 110mA (-30 max) - Standby: 2.5mA (TTL), 1.5mA (CMOS) 1.0mA (Self-refresh current) n High speed - 30/35/40 ns RAS access time - 16

📥 Download Datasheet

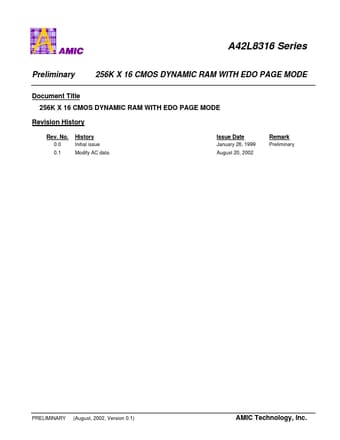

Preview of A42L8316 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A42L8316
Manufacturer
AMIC Technology
File Size
273.18 KB
Datasheet
A42L8316_AMICTechnology.pdf
Description
256K X 16 CMOS DYNAMIC RAM
