A25L10P, A25L05P (A25LxxP) Serial Flash Memory

A25L10P Description

www.DataSheet4U.com A25L20P/A25L10P/A25L05P Series 2Mbit / 1Mbit / 512Kbit, Low Voltage, Serial Flash Memory With 85MHz SPI Bus Interface Document Ti.
The A25L20P/A25L10P/A25L05P are 2M/1M/512 bit Serial Flash Memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible.

A25L10P Features

* 2Mbit / 1Mbit / 512Kbit of Flash Memory
* Flexible Sector Architecture - 25L20P: (4/4/8/16/32)KB/64x3 KB - 25L10P: (4/4/8/16/32)KB/64x1KB - 25L05P: (4/4/8/16/32)KB
* Bulk Erase (typical) - 25L20P (2M) in 6s - A25L10P (1M) in 4s - A25L05P (512K) in 3s
* Sector Erase

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: A25L10P, A25L05P. Please refer to the document for exact specifications by model.

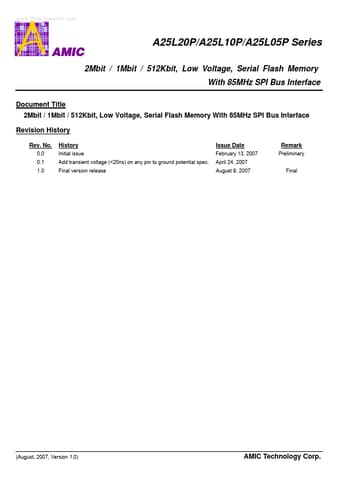

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A25L10P, A25L05P
Manufacturer
AMIC Technology
File Size
565.77 KB
Datasheet
A25L05P_AMICTechnology.pdf
Description
(A25LxxP) Serial Flash Memory
Note
This datasheet PDF includes multiple part numbers: A25L10P, A25L05P.
Please refer to the document for exact specifications by model.
