General Description

ONDx is a family of OR-NAND circuits consisting of two 3-input OR gates and one 2-input OR gate into a 3-input NAND gate.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (OND2-AMI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number OND6
Manufacturer AMI
File Size 26.83 KB
Description CMOS Gate Array
Datasheet download datasheet OND6 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by AMI

Part Number Description
OND2 CMOS Gate Array
OND4 CMOS Gate Array

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

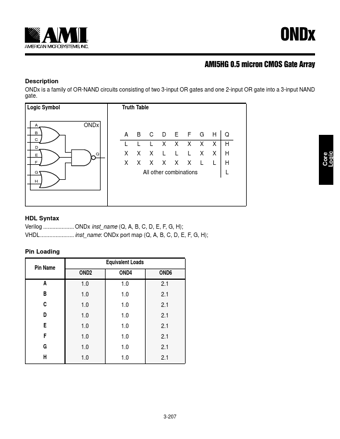

Core Logic 21'[ ® $0,+*  PLFURQ &026 *DWH $UUD Description ONDx is a family of OR-NAND circuits consisting of two 3-input OR gates and one 2-input OR gate into a 3-input NAND gate. Logic Symbol Truth Table A ONDx B ABCDE FGHQ C D L L LXXXXXH E Q XXXL L LXXH F XXXXXXL LH G All other combinations L H HDL Syntax Verilog .................... ONDx inst_name (Q, A, B, C, D, E, F, G, H); VHDL...................... inst_name: ONDx port map (Q, A, B, C, D, E, F, G, H); Pin Loading Pin Name A B C D E F G H OND2 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 Equivalent Loads OND4 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 OND6 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.
