ON64 - CMOS Gate Array

Download the ON64 datasheet PDF. This datasheet also covers the ON62 variant, as both devices belong to the same cmos gate array family and are provided as variant models within a single manufacturer datasheet.

Description

ON6x is a family of OR-NAND circuits consisting of two 3-input OR gates into a 2-input NAND gate.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ON62-AMI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ON64
Manufacturer AMI
File Size 25.77 KB
Description CMOS Gate Array
Datasheet download datasheet ON64 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by AMI

Part Number Description
ON62 CMOS Gate Array
ON66 CMOS Gate Array

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

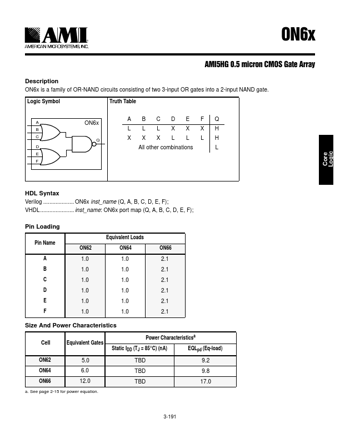

21[ ® $0,+*  PLFURQ &026 *DWH $UUD Description ON6x is a family of OR-NAND circuits consisting of two 3-input OR gates into a 2-input NAND gate. Logic Symbol Truth Table A ON6x A BCDE FQ B L L LXXXH C Q XXXL L LH D All other combinations L E F Core Logic HDL Syntax Verilog .................... ON6x inst_name (Q, A, B, C, D, E, F); VHDL...................... inst_name: ON6x port map (Q, A, B, C, D, E, F); Pin Loading Pin Name A B C D E F ON62 1.0 1.0 1.0 1.0 1.0 1.0 Equivalent Loads ON64 1.0 1.0 1.0 1.0 1.0 1.0 ON66 2.1 2.1 2.1 2.1 2.1 2.1 Size And Power Characteristics Power Characteristicsa Cell Equivalent Gates Static IDD (TJ = 85°C) (nA) EQLpd (Eq-load) ON62 5.0 TBD 9.2 ON64 6.0 TBD 9.8 ON66 12.0 TBD 17.0 a. See page 2-15 for power equation.
