NA26, NA21 Datasheet - AMI

NA26 CMOS Gate Array

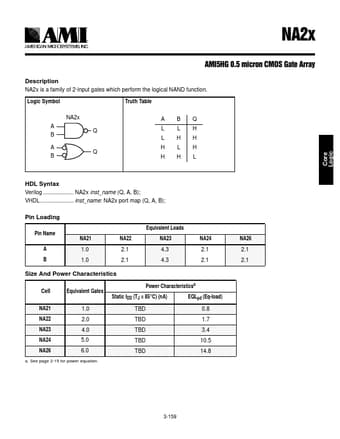

NA2x is a family of 2-input gates which perform the logical NAND function. Logic Symbol Truth Table NA2x A B A B Q Q ABQ L LH L HH HLH HH L HDL Syntax Verilog NA2x inst_name (Q, A, B); VHDL inst_name: NA2x port map (Q, A, B); Pin Loading Pin Name A B NA21 1.0 1.0 NA22 2.1 2.1 Equivalent L.

NA21-AMI.pdf

NA26 Datasheet Preview — This datasheet PDF includes multiple part numbers: NA26, NA21. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NA26, NA21

Manufacturer:

AMI

File Size:

25.92 KB

Description:

Cmos gate array.

Note:

This datasheet PDF includes multiple part numbers: NA26, NA21.
Please refer to the document for exact specifications by model.
