DF4F2 - CMOS Gate Array

Download the DF4F2 datasheet PDF (DF4F1 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for cmos gate array.

Description

DF4Fx is a family of static, master-slave, multiplexed scan D flip-flops without SET or RESET.

Outputs are buffered and change state on the rising edge of the clock.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DF4F1-AMI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DF4F2
Manufacturer AMI
File Size 39.11 KB
Description CMOS Gate Array
Datasheet download datasheet DF4F2 Datasheet

📁 Similar Datasheet

Other Datasheets by AMI

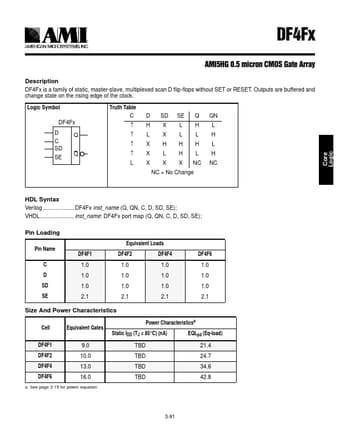

Full PDF Text Transcription

Click to expand full text
Core Logic '))[ ® $0,+*  PLFURQ &026 *DWH $UUD Description DF4Fx is a family of static, master-slave, multiplexed scan D flip-flops without SET or RESET. Outputs are buffered and change state on the rising edge of the clock. Logic Symbol DF4Fx DQ C SD SE Q Truth Table C ↑ ↑ ↑ ↑ L D SD SE Q HX L H LXLL XHHH XLHL X X X NC NC = No Change QN L H L H NC HDL Syntax Verilog .................... DF4Fx inst_name (Q, QN, C, D, SD, SE); VHDL...................... inst_name: DF4Fx port map (Q, QN, C, D, SD, SE); Pin Loading Pin Name C D SD SE DF4F1 1.0 1.0 1.0 2.1 Equivalent Loads DF4F2 DF4F4 1.0 1.0 1.0 1.0 1.0 1.0 2.1 2.1 DF4F6 1.0 1.0 1.0 2.1 Size And Power Characteristics Power Characteristicsa Cell Equivalent Gates Static IDD (TJ = 85°C) (nA) EQLpd (Eq-load) DF4F1 9.
