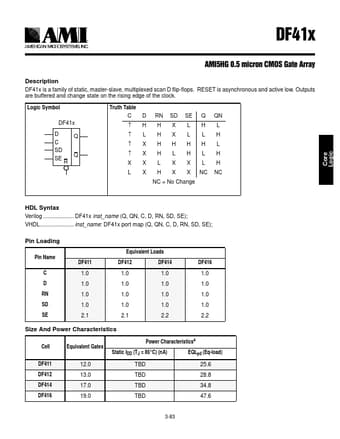

DF411, CMOS Gate Array
DF41x is a family of static, master-slave, multiplexed scan D flip-flops.
RESET is asynchronous and active low.
Outputs are buffered and change state on the rising edge of the clock.
Logic Symbol DF41x D C SD SE R Q Q Truth Table C D RN SD SE Q QN ↑HHX LHL ↑LHXL LH ↑ XHHHH L ↑XHLHLH XXLXXLH L X
