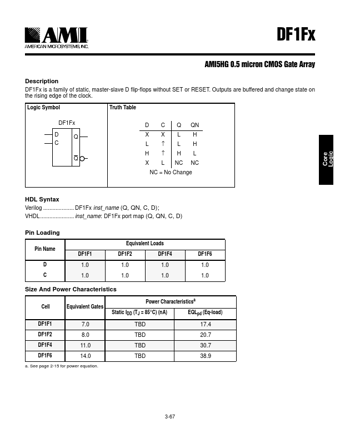

DF1F6, DF1F1, CMOS Gate Array
DF1Fx is a family of static, master-slave D flip-flops without SET or RESET.
Outputs are buffered and change state on the rising edge of the clock.
Logic Symbol Truth Table DF1Fx DQ C Q D C Q QN XX L H L ↑LH H↑HL X L NC NC NC = No Change HDL Syntax Verilog DF1Fx inst_name (Q, QN, C, D); VHDL i
