DC22, DC21 Datasheet - AMI

DC22 CMOS Gate Array

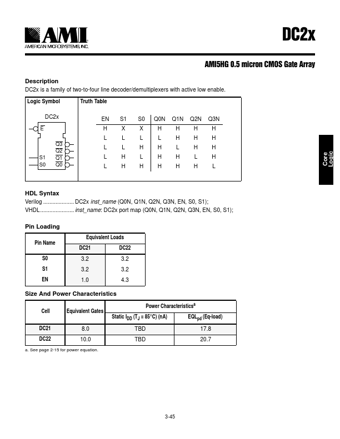

DC2x is a family of two-to-four line decoder/demultiplexers with active low enable. Logic Symbol Truth Table DC2x E Q3 Q2 S1 Q1 S0 Q0 EN S1 S0 Q0N Q1N Q2N Q3N HXXHHHH L L L LHHH L LHHLHH L H L HH L H L HHHHH L HDL Syntax Verilog DC2x inst_name (Q0N, Q1N, Q2N, Q3N, EN, S0, S1); VHDL inst_name: .

DC21-AMI.pdf

DC22 Datasheet Preview — This datasheet PDF includes multiple part numbers: DC22, DC21. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DC22, DC21

Manufacturer:

AMI

File Size:

24.63 KB

Description:

Cmos gate array.

Note:

This datasheet PDF includes multiple part numbers: DC22, DC21.
Please refer to the document for exact specifications by model.
