AMIS-40615 LIN Transceiver

AMIS-40615 Description

AMIS-40615 LIN Transceiver with 3.3V Voltage Regulator 1.0 General .
Data Sheet The AMIS-40615 is a full-featured local interconnect network (LIN) transceiver designed to interface between a LIN protocol controller an.

AMIS-40615 Features

* 2.1 LIN-Bus Transceiver
* LIN compliant to specification revision 2.0 (backwards compatible to version 1.3) and J2602 SmartPower, high-voltage, mixed-signal 0.35µm CMOS technology Bus voltage ± 45V Transmission rate up to 20kBaud SOIC 14 Green package

AMIS-40615 Applications

* The domain is class-A multiplex buses with a single master node and a set of slave nodes. AMIS-40615 is designed as a master or slave node for the LIN communication interface with integrated 3.3V voltage regulator having a current capability up to 50mA for supplying any external components (microco

📥 Download Datasheet

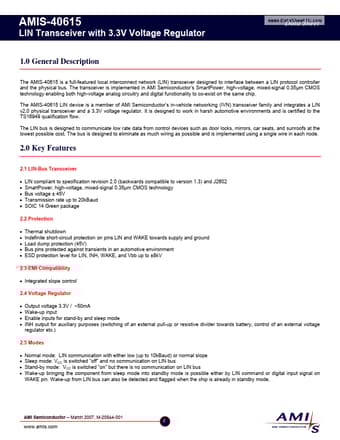

Preview of AMIS-40615 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AMIS-40615
Manufacturer
AMI SEMICONDUCTOR
File Size
1.02 MB
Datasheet
AMIS-40615_AMISEMICONDUCTOR.pdf
Description
LIN Transceiver
