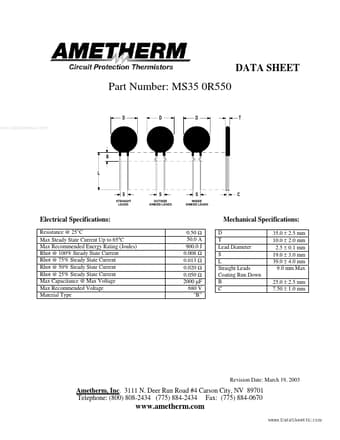

DATA SHEET
Part Number: MS35 0R550
D D D T
www.DataSheet4U.com
B
L
S
STRAIGHT LEADS
S
OUTSIDE KINKED LEADS
S
INSIDE KINKED LEADS
C
Electrical Specifications:
Resistance @ 25°C Max Steady State Current Up to 65°C Max Recommended Energy Rating (Joules) Rhot @ 100% Steady State Current Rhot @ 75% Steady State Current Rhot @ 50% Steady State Current Rhot @ 25% Steady State Current Max Capacitance @ Max Voltage Max Recommended Voltage Material Type 0.50 Ω 50.0 A 900.0 J 0.008 Ω 0.013 Ω 0.020 Ω 0.050 Ω 2000 µF 680 V “B”
Mechanical Specifications:
D T Lead Diameter S L Straight Leads Coating Run Down B C 35.0 ± 2.5 mm 10.0 ± 2.0 mm 2.5 ± 0.1 mm 19.0 ± 3.0 mm 39.0 ± 4.0 mm 9.0 mm Max 25.0 ± 2.5 mm 7.50 ± 1.0 mm
Revision Date: March 19, 2003
Ametherm, Inc. 3111 N.
MS350R550 Datasheet
