Am1407, Am1406 Dual 100-Bit Dynamic Shift Registers

AMD

Description

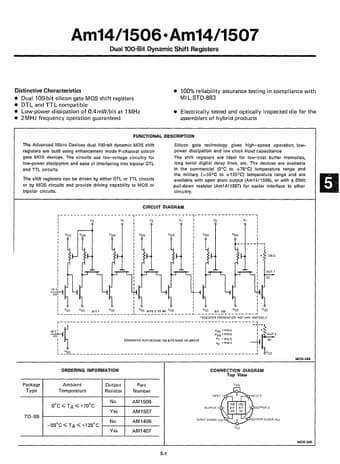

Am14/1506 * Am14/1507 Dual100-Bit Dynamic Shift Registers Distinctive Characteristics * Dual 1~O-bit silicon gate MOS shift registers .
The Advanced Micro Devices dual 100-bit dynamic MaS shift registers are built using enhancement mode P-channel silicon gate MaS devices.

📥 Download Datasheet

Am1407 Datasheet Preview — This datasheet PDF includes multiple part numbers: Am1407, Am1406. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: Am1407, Am1406
Manufacturer: AMD
File Size: 203.34 KB
Datasheet: Am1406-AMD.pdf
Description: Dual 100-Bit Dynamic Shift Registers
Note: This datasheet PDF includes multiple part numbers: Am1407, Am1406.
Please refer to the document for exact specifications by model.

Applications

* Note 3: Leakage current for 1406 and 1506 only. For 1407 and 1507 the output on pins 2 and 6 will exhibit a resistance when measured with thE!" following bias c ditions: pins 1, 6, and 8 at GND; pins 3 and 5 at -16 V; pin 4 open; measure pins 2 and 6. 25 kO:2: ROUT :2: 15 kO. Nole 4: Power dissipat
