AM29DL161D - (AM29DL16xD) 16 Megabit (2 M X 8-Bit/1 M X 16-Bit) Boot Sector

AMD

📥 Download Datasheet

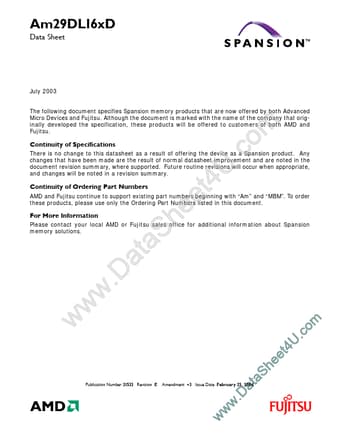

AM29DL161D Datasheet Preview — Preview of AM29DL161D PDF

Datasheet Details

Part number: AM29DL161D
Manufacturer: AMD
File Size: 1.26 MB
Datasheet: AM29DL161D_AMD.pdf
Description: (AM29DL16xD) 16 Megabit (2 M X 8-Bit/1 M X 16-Bit) Boot Sector

AM29DL161D Product details

Description

The Am29DL16xD family consists of 16 megabit, 3.0 volt-only flash memory devices, organized as 1,048,576 words of 16 bits each or 2,097,152 bytes of 8 bits each. DQ15; byte mode data appears on DQ0 DQ7.

Features

Data Management Software (DMS).
AMD-supplied software manages data programming and erasing, enabling EEPROM emulation.
Eases sector erase limitations.
Supports Common Flash Memory Interface (CFI).
Erase Suspend/Erase Resume.
Suspends erase operations to allow programming in same bank.
Data# Polling and Toggle Bits.
Provides a software method of detecting the status of program or erase cycles.
Unlock Bypass Program command.
Re.
