S2204 Quad Gigabit Ethernet Device

S2204 Description

® DEVICE SPECIFICATION QUAD GIGABIT ETHERNET DEVICE QUAD GIGABIT ETHERNET DEVICE GENERAL .
S2204 S2204 FEATURES. 1250 MHz (Gigabit Ethernet) operating rate www. Quad Transmitter with p.

S2204 Features

* 1250 MHz (Gigabit Ethernet) operating rate www. datasheet4u. com - 1/2 Rate Operation
* Quad Transmitter with phase-locked loop (PLL) clock synthesis from low speed reference
* Quad Receiver PLL provides clock and data recovery
* Internally series terminated TTL outpu

S2204 Applications

* including Gigabit Ethernet, serial backplanes, and proprietary point to point links. The chip provides four separate transceivers which can be operated individually for a data capacity of >4 Gbps. Each bi-directional channel provides parallel to serial and serial to parallel conversion, clock genera

📥 Download Datasheet

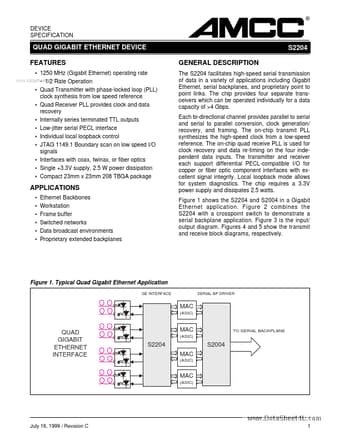

S2204 Datasheet Preview — Preview of S2204 PDF

Datasheet Details

Part number: S2204
Manufacturer: AMCC
File Size: 396.94 KB
Datasheet: S2204_AMCC.pdf
Description: Quad Gigabit Ethernet Device
