UPD-40-UVIR-D - Ultrafast Photodetectors

Download the UPD-40-UVIR-D datasheet PDF (UPD-15-IR2-FC included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for ultrafast photodetectors.

Features

  • Ultra High-Speed Operation.
  • Rise Times: starting from 15 ps.
  • Bandwidths: up to 25 GHz.
  • Spectral Ranges: 170 - 2600 nm.
  • Compact Design.
  • Battery or External Power Supply.
  • Models for Free-Space Beam, or with FC/PC Receptacle or Pigtailed with SM Fiber.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (UPD-15-IR2-FC_ALPHALAS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number UPD-40-UVIR-D
Manufacturer ALPHALAS
File Size 569.46 KB
Description Ultrafast Photodetectors
Datasheet download datasheet UPD-40-UVIR-D Datasheet

📁 Similar Datasheet

  • UPD1001 - USB Power Delivery Controller (Microchip)
  • UPD1002 - USB Power Delivery Controller (Microchip)
  • UPD120N15T1B - THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR (NEC)
  • UPD120N15T1B - THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR (Renesas)
  • UPD120N15TA - THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR (NEC)
  • UPD120N15TA - THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR (Renesas)
  • UPD120N18T1B - THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR (Renesas)
  • UPD120N18T1B - THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR (NEC)
  • UPD120N18TA - THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR (NEC)
  • UPD120N18TA - THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR (Renesas)
Other Datasheets by ALPHALAS

Full PDF Text Transcription

Click to expand full text

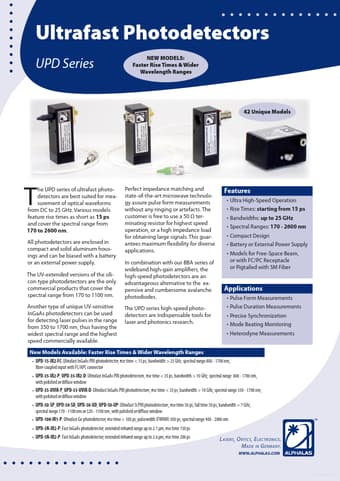

Ultrafast Photodetectors UPD Series NEW MODELS: Faster Rise Times & Wider Wavelength Ranges 42 Unique Models T he UPD series of ultrafast photodetectors are best suited for measurement of optical waveforms from DC to 25 GHz. Various models feature rise times as short as 15 ps and cover the spectral range from 170 to 2600 nm. All photodetectors are enclosed in compact and solid aluminum housings and can be biased with a battery or an external power supply. The UV-extended versions of the silicon type photodetectors are the only commercial products that cover the spectral range from 170 to 1100 nm.
