RV24AF-10-15F-B50K Datasheet PDF (24mm D-Shaft Potentiometer)

RV24AF-10-15F-B50K - 24mm D-Shaft Potentiometer

Download the RV24AF-10-15F-B50K datasheet PDF (RV24AF-10-15F-A10K included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 24mm d-shaft potentiometer.

Description

3/8’’x0.75, 6.5mm M8x0.75, 6.5 mm Metal Shaft Type Taper and Resistance Value Order Code Taper Resistance Value A100K Log/A 100KΩ B1M Linear/B 1MΩ C500K Rev-log/C 500KΩ Taper: A, B and C Resistance Value: 1KΩ to 500KΩ and 1MΩ

Datasheet Details

Part number	RV24AF-10-15F-B50K
Manufacturer	ALPHA
File Size	628.83 KB
Description	24mm D-Shaft Potentiometer
Datasheet	RV24AF-10-15F-B50K Datasheet

📁 Similar Datasheet

RV24A-10 - Snap-in Insulated / Metal Shaft Series (ETC)

RV24A-22 - Snap-in Insulated / Metal Shaft Series (ETC)

RV24A-30 - Snap-in Insulated / Metal Shaft Series (ETC)

RV24A-40 - Snap-in Insulated / Metal Shaft Series (ETC)

RV24A01-10 - Snap-in Insulated / Metal Shaft Series (ETC)

RV24A02-10 - Snap-in Insulated / Metal Shaft Series (ETC)

RV24A03-40 - Snap-in Insulated / Metal Shaft Series (ETC)

RV240SD-10 - Snap-in Insulated / Metal Shaft Series (ETC)

RV241K05T - Standard Metal Oxide Varistor (Stackpole)

RV241K07T - Standard Metal Oxide Varistor (Stackpole)

Full PDF Text Transcription

Click to expand full text

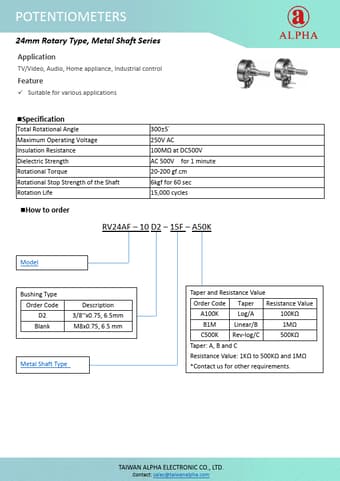

POTENTIOMETERS 24mm Rotary Type, Metal Shaft Series Application TV/Video, Audio, Home appliance, Industrial control Feature  Suitable for various applications Specification Total Rotational Angle Maximum Operating Voltage Insulation Resistance Dielectric Strength Rotational Torque Rotational Stop Strength of the Shaft Rotation Life 300±5 250V AC 100MΩ at DC500V AC 500V for 1 minute 20-200 gf.cm 6kgf for 60 sec 15,000 cycles How to order RV24AF – 10 D2 – 15F – A50K Model Bushing Type Order Code D2 Blank Description 3/8’’x0.75, 6.5mm M8x0.75, 6.
